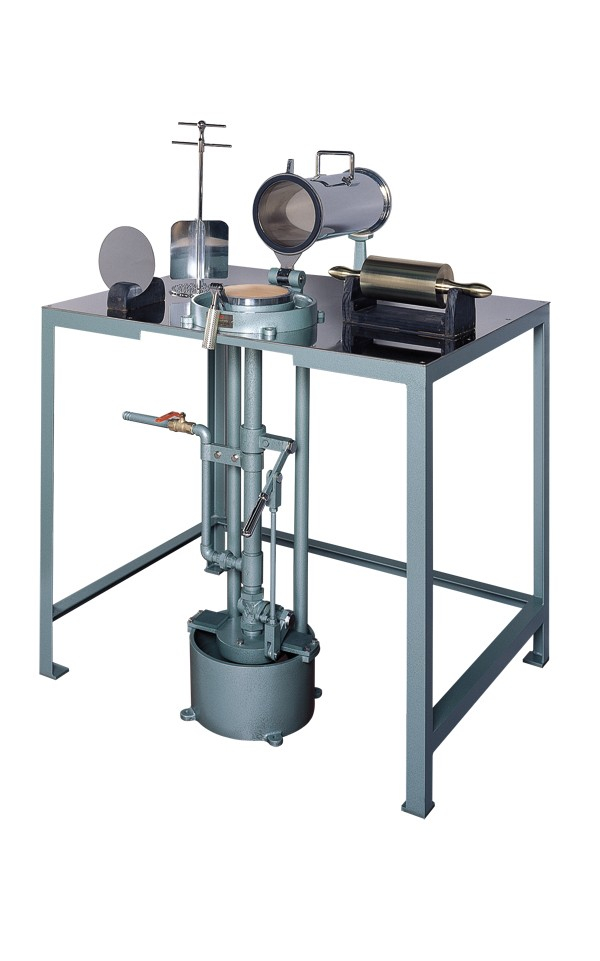

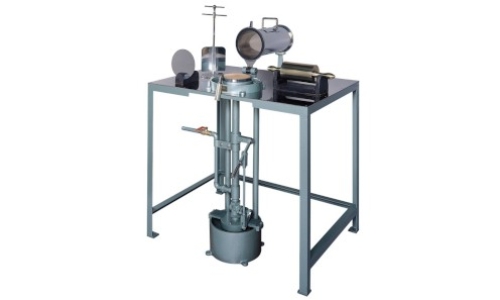

TAPPI Standard Sheet Former

It is necessary to make specimens in different conditions, to study how the paper characteristics are influenced by various elements including pulp material, pulping conditions, conditioning of raw materials such as beating method, filler, and sizing agent. Paper making with this machine is standardized by JIS and ISO for preparing a small number of sheets easily and rapidly. This machine is also used for measuring the drainage time according to the TAPPI standard.

Product Name TAPPI Standard Sheet Former
Product Code KRK-2545
Standards/Methods JIS P-8222-1998, ISO 5269/1, TAPPI T 205 om-88, TAPPI T 221 om-88
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Paper Making Size: 158mm in diameter, 200 cm²
Wire Cloth: upper 150 or 80 mesh, lower 20 mesh
Drainage Time (Water): 40 + 0.2 seconds, 20ºC + 1ºC
Accessories: agitator, couch roll, couch plate, drainage receiver, cylinder rest
Optional: mounting support
Outer Dimensions: 1000 x 750 x 1400mm (with support)
Instrument Weight: 78kg (with support)
