Standard Pulp Disintegrator - OpTest

  Home/Pulp and Fibrous Materials/Standard Pulp Disintegrator
KRK-2532

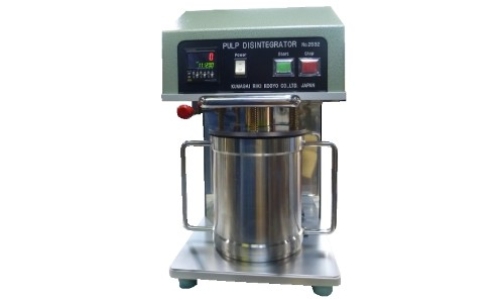

Standard Pulp Disintegrator

This machine disintegrates the pulp into single fibers. by rotating the pulp with water at a high speed. This disintegration method is specified by JIS and ISO. Its applicable range is wide: paper sheet making, preparation of specimen for measurement of freeness, beating, bleaching, and screening.

Product Name Standard Pulp Disintegrator
Product Code KRK-2532
Standards/Methods JIS P-8220-1998, TAPPI T 205 om-88, ISO 5263
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Capacity: 2 liters
Concentration: 1.2%
Specimen: 24g (O.D.)
Rotation Speed: 3,000 rpm
Timer: Automatic stop
Motor: 100/110VAC 0.2kW 50/60Hz 6A
Outer Dimensions: 260 x 500 x 460mm
Instrument Weight: 30kg (tank weight 3.6kg)
