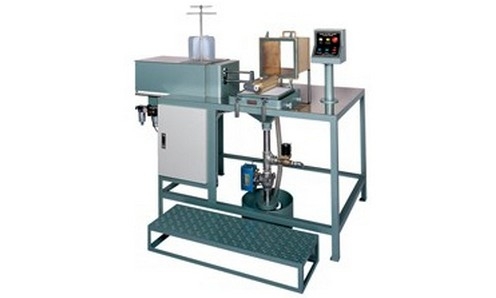

Square Sheet Former with Auto-couching

This machine has been developed to entirely automate couching process in square paper making, aimed at reduced workload of the operator and variance in physical data. The solenoid valves for water feed and drainage enables easy operation with push buttons.

Product Name Square Sheet Former with Auto-couching
Product Code KRK-2556-II
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Paper Making Size 250×250mm
Couch Roll 83.5mm in diameter, 280mm long, weight 13kg
Number of Couching Operations 5 (1 to 9) by pre-setting counter
Couching Speed 200 (100 to 300) mm/sec.
Accessories couch roll, couch plate, agitator, step
Power Source 100/110VAC 50/60Hz 1A
Air Source 0.3MPa
Outer Dimensions 1,650×850×1,370mm
Instrument Weight 255kg
