Speed Dryer - OpTest

  Home/Pulp and Fibrous Materials/Speed Dryer
PTA-N63XX

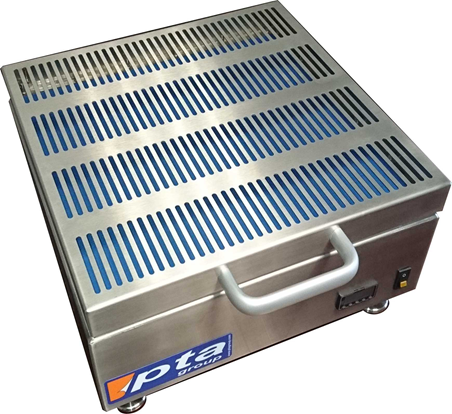

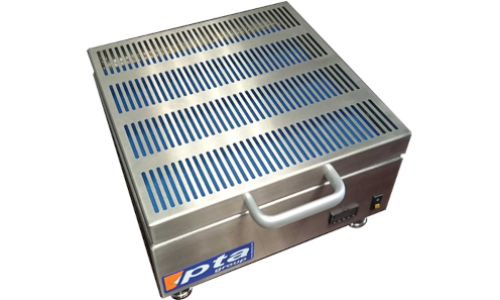

Speed Dryer

For the rapid drying of hand sheets and for determining the dry content of other materials.

Product Name Speed Dryer
Product Code PTA-N63XX
Standards/Methods TAPPI T 205
Test Material Pulp, Paper
Manufacturer The PTA Group / Noviprofibre (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

Available Models:

Model N6310 - Size of heating plate: 350 x 350 mm

Model N6320 - Size of heating plate: 580 x 420 mm


• Special heating plate with equal heat distribution

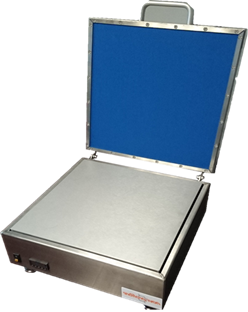

• Lightweight drying cover
• On-off switch in the front-panel
• Temperature adjustable (+- 1 °C max. deviation)
• Regulator with digital display
• Special air permeable fabric for perfect steam evaporation
• Dryer temperature adjustable up to 180 °C
• Spare cloth included and easy to change
• Default Electrical Connection: 230 V / 50 Hz
• Weight (equipment only / with packaging): 18 kg / 30 kg
• Dimensions (W x L x H - equipment only / with packaging): 380 x 420 x 180 mm / 500 x 600 x 300 mm
