Sheet Press (Square Sheet)

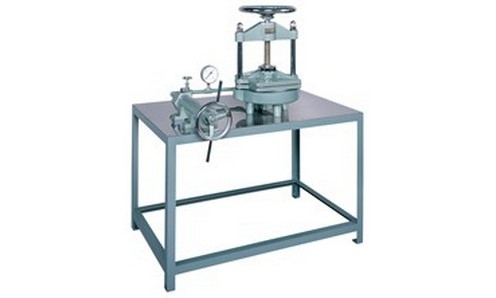

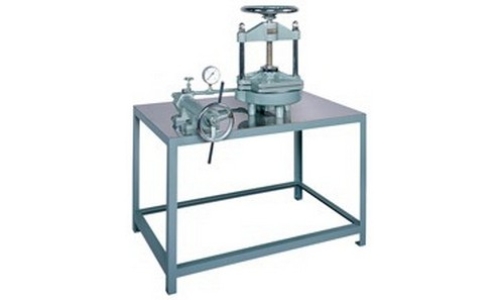

This press couches and squeezes water out of paper sheets produced on a sheet machine. A plunger-type pump is employed, which sends stored glycerin to the rubber diaphragm at the press section when the pump handle is operated. The diaphragm then pushes up the lower pressure board to compress the specimen. Improvement has been made with the stability while applying pressure to achieve squeezing with a higher pressure.

Product Name Sheet Press (Square Sheet)
Product Code KRK-2570-A
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Specimen Size 250×250mm
Table Size 270×270mm
Pressure max. 1.2MPa
Accessory mounting support
Outer Dimensions 825×650×595mm
Instrument Weight 145kg
