Sheet Press (245 x 245 mm) - OpTest

  Home/Pulp and Fibrous Materials/Sheet Press (245 x 245 mm)
PTA-N2001

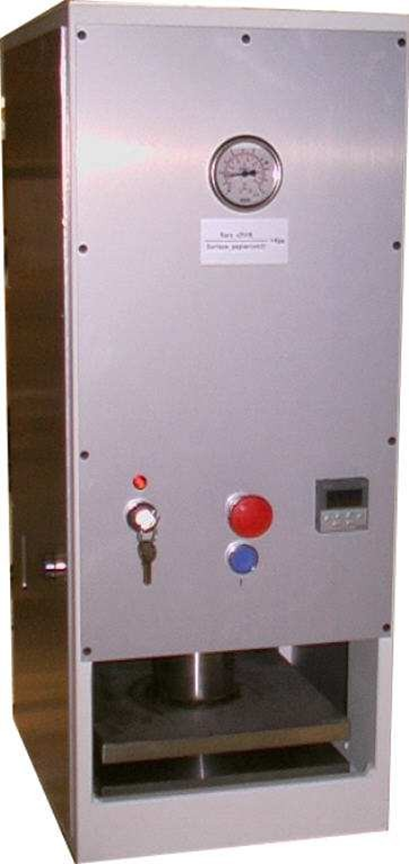

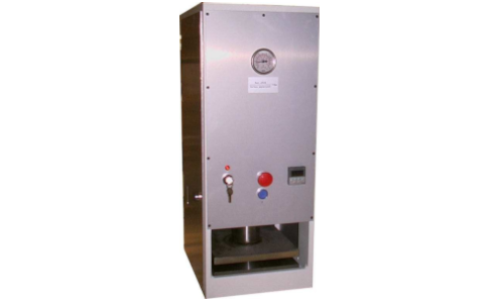

Sheet Press (245 x 245 mm)

For de-watering and pressing of hand-sheets produced on sheet machines according to TAPPI or SCAN.

Product Name Sheet Press (245 x 245 mm)
Product Code PTA-N2001
Standards/Methods TAPPI T 205, ISO 5269, SCANC26/M5
Test Material Pulp
Manufacturer The PTA Group / Noviprofibre (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

• Plates dimensions: 245 x 245 mm Maximum Opening: 150 mm
• Pressure of 400 kPa adjustable in relation with the dimensions of the sheets.
• Evacuation of the water at the back of the apparatus.
• Adjustment of the pressure time from 0 to 100 minutes.
• Adjustment of the different speeds.
