Sheet Press - OpTest

Sheet Press

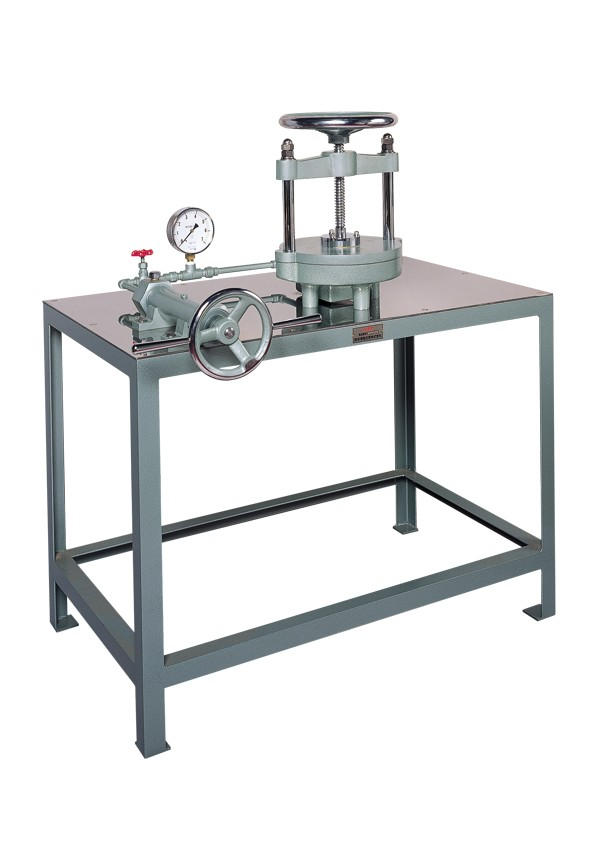

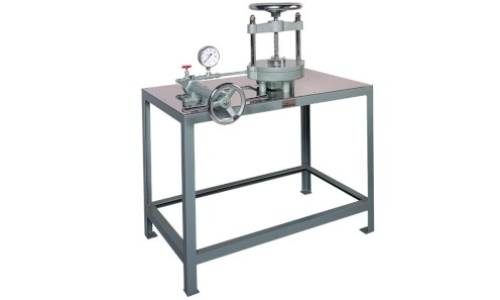

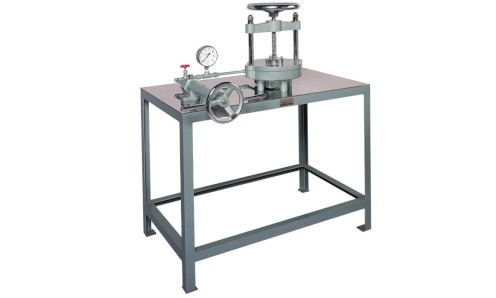

This machine rapidly dewaters the paper sheet after couching, which was made by the sheet machine. Machine configuration: by the movement of the pump piston, glycerin pushes upward the floating pressure plate via the rubber diaphragm in the press, to apply a pressure to the specimen. The upper disc of the press is supported by two columns, facilitating handling of the sheet. This upper disc can be easily moved upward.

Product Name Sheet Press
Product Code KRK-2546
Standards/Methods JIS P-8222-1998, ISO 5269/1, TAPPI T 205 om-88
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Pressure: 410 + 10kPa (gauge pressure 0.35MPa)
Optional: mounting support
Outer Dimensions: 950 x 560 x 1120mm (with support)
Instrument Weight: 65kg (with support)
