Niagara Beater with Wash Drum - OpTest

  Home/Pulp and Fibrous Materials/Niagara Beater with Wash Drum

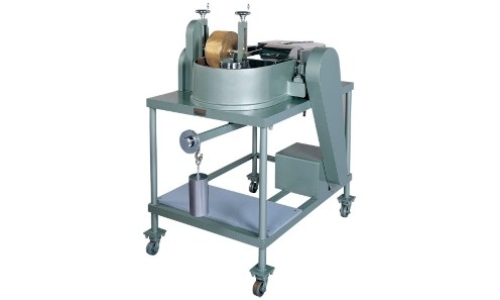

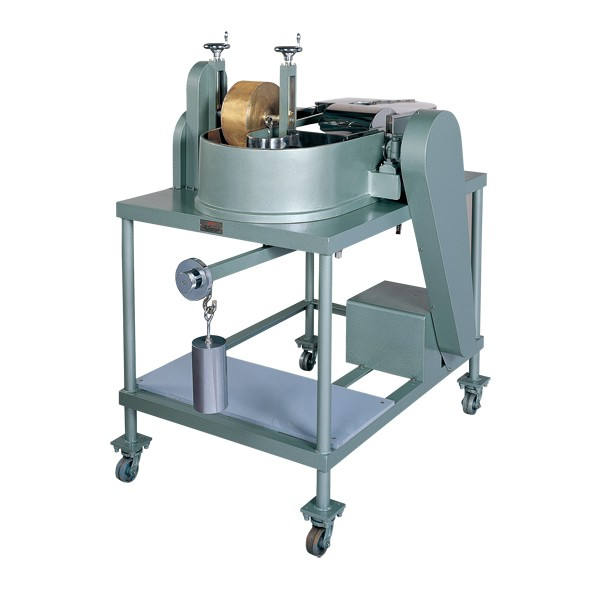

Niagara Beater with Wash Drum

This machine is widely used as a standard tester per JIS and TAPPI. Unlike the conventional beater, the roll is fixed, and a constant load is applied on the head plate, thereby constantly giving a uniform beating pressure. It is excellent especially in free beating and wet beating. So, it is very effective for quality management.

Product Name Niagara Beater with Wash Drum
Product Code KRK-2506
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Capacity: 23 liters
Material of Wash Drum: frame of brass, plain-woven wire 80 mesh
Rotation Speed of Wash Drum: 10rpm
Driving Motor of Wash Drum: 100VAC 0.065kW 50/60Hz
Power Source:

three-phase 200/220VAC 50/60 Hz 5A

single-phase 100/110VAC 50/60 Hz 1A
Outer Dimensions: 1320 x 730 x 1250mm
Instrument Weight: about 280kg
