Mini-size Autoclave

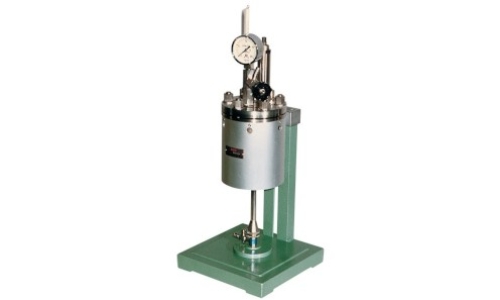

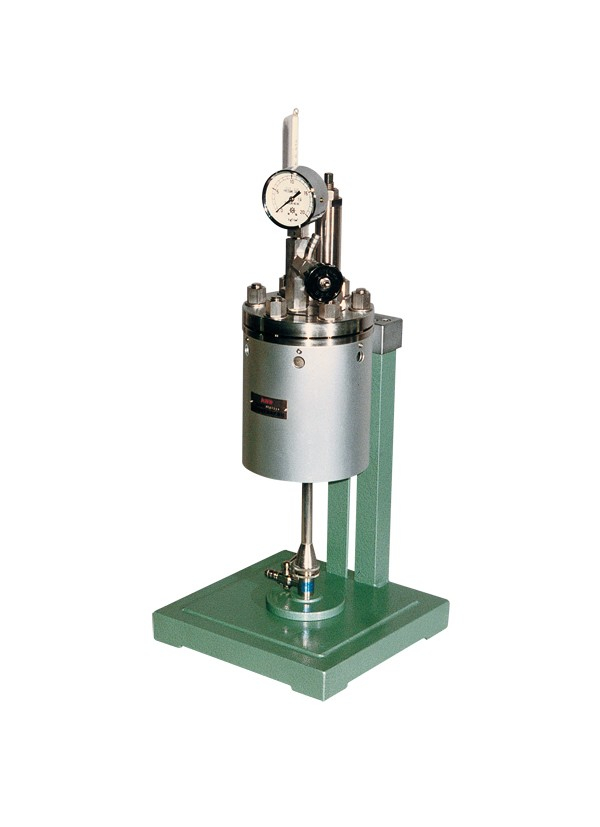

This autoclave is for timber chip cooking tests in a university laboratory, etc. As such, the cooking chamber small-sized and can be heated on a gas burner, which is suited for a simple pulping experiment. By removing the fixing pins supporting the chamber body, it can be shaken sideways, helping even permeation of the liquor into chips.

Product Name Mini-size Autoclave
Product Code KRK-2616
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Capacity: 500cc
Material: SUS-316
Pressure: max. 1.5MPa
Pressure Gauge: 2MPa
Heating: by gas burner
Accessories: safety valve, gas purge valve, thermometer pocket, thermometer 300ºC, Bunsen burner
Outer Dimensions: 240 x 240 x 540mm
Instrument Weight: 10kg
