Large Size Pulp Disintegrator (10L or 30L) - OpTest

  Home/Pulp and Fibrous Materials/Large Size Pulp Disintegrator (10L or 30L)

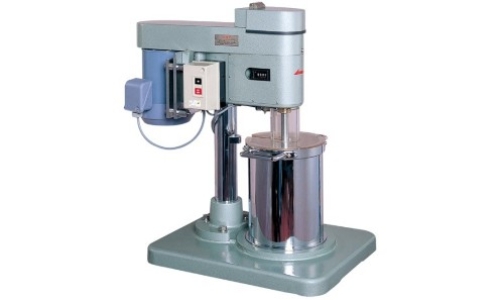

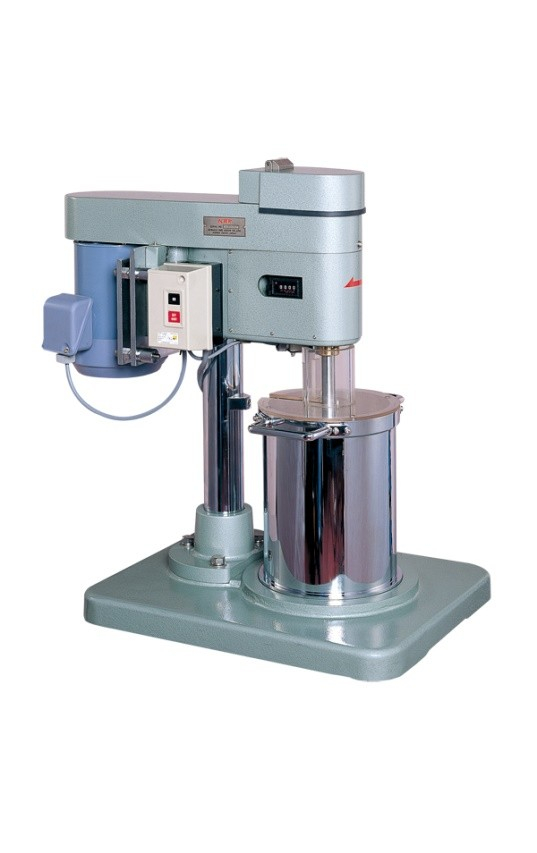

Large Size Pulp Disintegrator (10L or 30L)

This machine is used in the same manner as the standard pulp disintegrator. It is suitable for disintegration of a relatively large amount of specimen. It is indispensable for pre-treatment for paper sheet making.

Product Name Large Size Pulp Disintegrator (10L or 30L)
Product Code KRK-2531
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Capacity: 5, 10, 20 liters
Concentration: max. 2.5%
Disintegration Time: set by the timer
Motor: three-phase 200/220VAC 0.75 to 2.2kW
Outer Dimensions:

645x 420 x 680 mm (5 liters)
670 x 420 x 800 mm (10 liters)
730 x 475 x 950 mm (20 liters)
Instrument Weight:

120kg (5 liters)
126kg (10 liters)
143kg (20 liters)


Large-size pulp disintegrator (30 liters)
Since the slurry is discharged through the port in the container bottom, it is not necessary to place and remove the container, facilitating operation.

Capacity: 30 liters
Concentration: max. 2.5%
Specimen Tank: fixed on the specifically designed support
Rotation Speed: 2,000rpm
Disintegration Time: set by the timer
Motor: three-phase 200/220VAC 2.2kW 9A
Discharge Port: 52mm in diameter (with valve)
Outer Dimensions: 500 x 750 x 1440mm
Instrument Weight: 157kg



Request a Quote or Information
