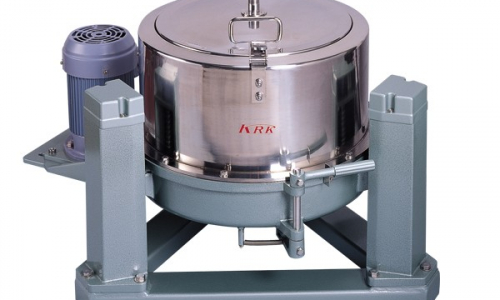

Large Size Centrifugal Pulp Dehydrator (Suspended on Three Legs)

This machine rapidly dehydrates pulp slurry. Unique suspended design completely offsets unbalance in rotation. Low noise of rotation. The brake immediately stops the operation.

Product Name	Large Size Centrifugal Pulp Dehydrator (Suspended on Three Legs)
Product Code	KRK-2537
Manufacturer	Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest	Exclusive to Canada, USA, and Mexico

Specifications

Material of Section in Contact with Liquid: SUS-304 (stainless Steel)
Optional: filter cloth, rotation control with inverter
Power Source:

A, B 100/110VAC 50/60Hz 9A

C, D three-phase 200/220VAC 50/60 Hz 7A
Outer Dimensions:
A 550 x 710 x 570mm Instrument weight 78kg
B 620 x 850 x 610mm Instrument weight 100kg
C 830 x 1100 x 610mm Instrument weight 250kg
D 830 x 1100 x 610mm Instrument weight 270kg

	Inner diameter	Depth	Capacity	Rotation Speed	Motor
A	240mm	140mm	3 liters	3000rpm	0.4kW
B	300mm	160mm	4.5 liters	3000rpm	0.75kW
C	405mm	200mm	12 liters	2000rpm	1.5kW
D	455mm	210mm	15 liters	1800rpm	1.5kW
