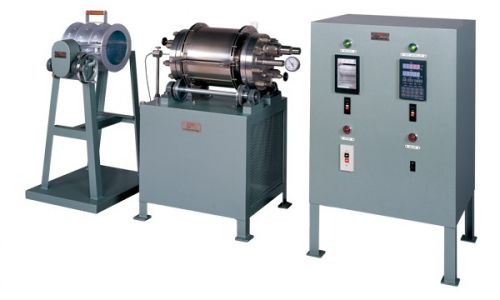

Horizontal Type Rotating Autoclave (Program Controlled Type)

This autoclave is used in digestion experiments on various wood chips. To strictly comply with the temperature setting according to a preset cooking schedule, a thermometer device is installed on the chamber body for program-based control, enabling automatic control via the control unit. This mechanism significantly contributes to higher accuracy of digestion experiments, improved reproducibility, and labor saving.

Product Name Horizontal Type Rotating Autoclave (Program Controlled Type)
Product Code KRK-2611
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Temperature Controller: digital, program-based setting
Temperature Range: 0 to 300ºC, temperature accuracy +2%
Set Time: 1 minute to 99 hours/step, number of steps max. 99 steps
Number of Programs: max. 7
Control Method: PID
Temperature Detector: PT 100Ω
Optional: electronic recorder, record paper 60mm wide
Outer Dimensions: autoclave 590 x 450 x 900mm
Controller: 590 x 490 x 900mm
Reversing Device: 530 x 420 x 780mm
Instrument Weight:

Autoclave 133kg
Controller 69kg
Reversing device 46kg
