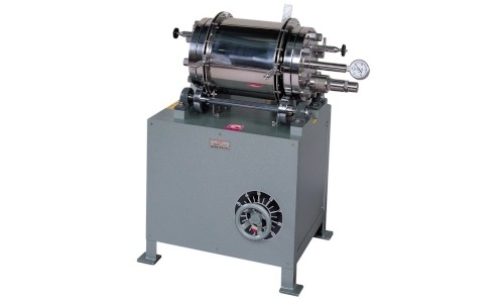

Horizontal Type Rotating Autoclave

This autoclave is used in a range of chemical experiments as well as for cooking of various wood chips. It is designed to allow reactions to take place adequately and uniformly even with a very low liquid ratio, providing an advantage that allows experiments under conditions close to the site conditions. In addition, to control environmental problems, it is widely used in studies of oxygen bleaching and oxygen digestion.

Product Name	Horizontal Type Rotating Autoclave
Product Code	KRK-2612
Manufacturer	Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest	Exclusive to Canada, USA, and Mexico

Specifications

Capacity: 4, 10, 30 liters
Max. Pressure: 1.5MPa
Liquor Ratio: 1:1.5 or 1:2
Material of Cooker: SUS-316 (molybdenum stainless Steel)
Heating: electric furnace (divided in two parts)
Heater:

For 4 liters; single-phase 200/220VAC 20A,
For 10 liters; three-phase 200/220VAC 30A,
For 30 liters, three-phase 200/220VAC60A
Temperature Control: by slide regulator
Heater Cover: SUS-304
Pressure Gauge: 2MPa, acid resistant
Rotation Speed: I0rpm
Geared Motor:

For 4 liters; single-phase I00VAC 0.1 kW,
For 10 liters; three-phase 200VAC 0.1kW,
For 30 liters; three-phase 200VAC 0.4kW
Optional: baffle plate for pulp agitation
Inspection of Vessel: inspected by a third-party organization according to the regulation for class 1 or small-size pressure vessels
Outer Dimensions:

750 x 540 x 840mm (4 liters)
800 x 670 x 960mm (10 liters)
1140 x 835 x 1085mm (30 liters)
Instrument Weight: 163 to 250kg
