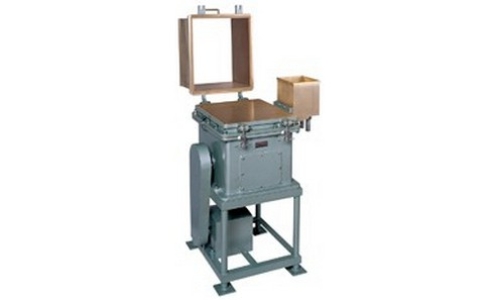

Flat Screen (Standard Type)

This equipment is used for isolating digested pulp and measuring knots. The mechanism gives vibration to digested pulp placed inside the screen box through the bottom screen resting on the rubber diaphragm, sucks them toward the screen plate and discharges them, alternately repeating, promoting passage of digested fibers, and sifting through good-quality pulp.

Product Name Flat Screen (Standard Type)
Product Code KRK-2625-A
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Screen Box 304×254×220mm
Screen Plate Slit or Round Hole 6/1,000” to 50/1,000” or 2 to 5mm in diameter
Vibration Frequency of Diaphragm 700/min.
Amplitude 3.2mm
Gate Height 100mm
Power Source three-phase 200/220VAC 50/60Hz 2A
Outer Dimensions 600×650×1,200mm
Instrument Weight 106kg
