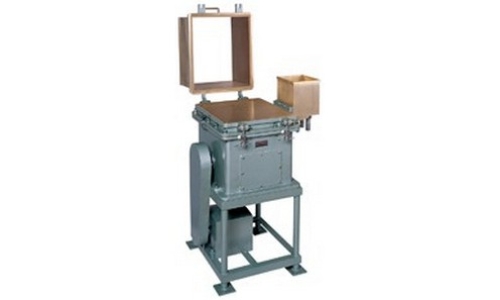

Flat Screen (Large Size Screen Type)

This equipment is used for isolating digested pulp and measuring knots. The mechanism gives vibration to digested pulp placed inside the screen box through the bottom screen resting on the rubber diaphragm, sucks them toward the screen plate and discharges them, alternately repeating, promoting passage of digested fibers, and sifting through good-quality pulp.

Product Name Flat Screen (Large Size Screen Type)
Product Code KRK-2625-B
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Screen Box 430×362×300mm
Screen Plate Slit or Round Hole 6/1,000” to 50/1,000” or 2 to 5mm in diameter
Vibration Frequency of Diaphragm 700/min.
Amplitude 4.4mm
Gate Height 100mm
Power Source three-phase 200/220VAC 50/60Hz 2A
Capacity Ratio standard type to large type = 1/4
Outer Dimensions 710×670×1,250mm
Instrument Weight 182kg
