Disintegrator - OpTest

  Home/Pulp and Fibrous Materials/Disintegrator
PTA-N62XX

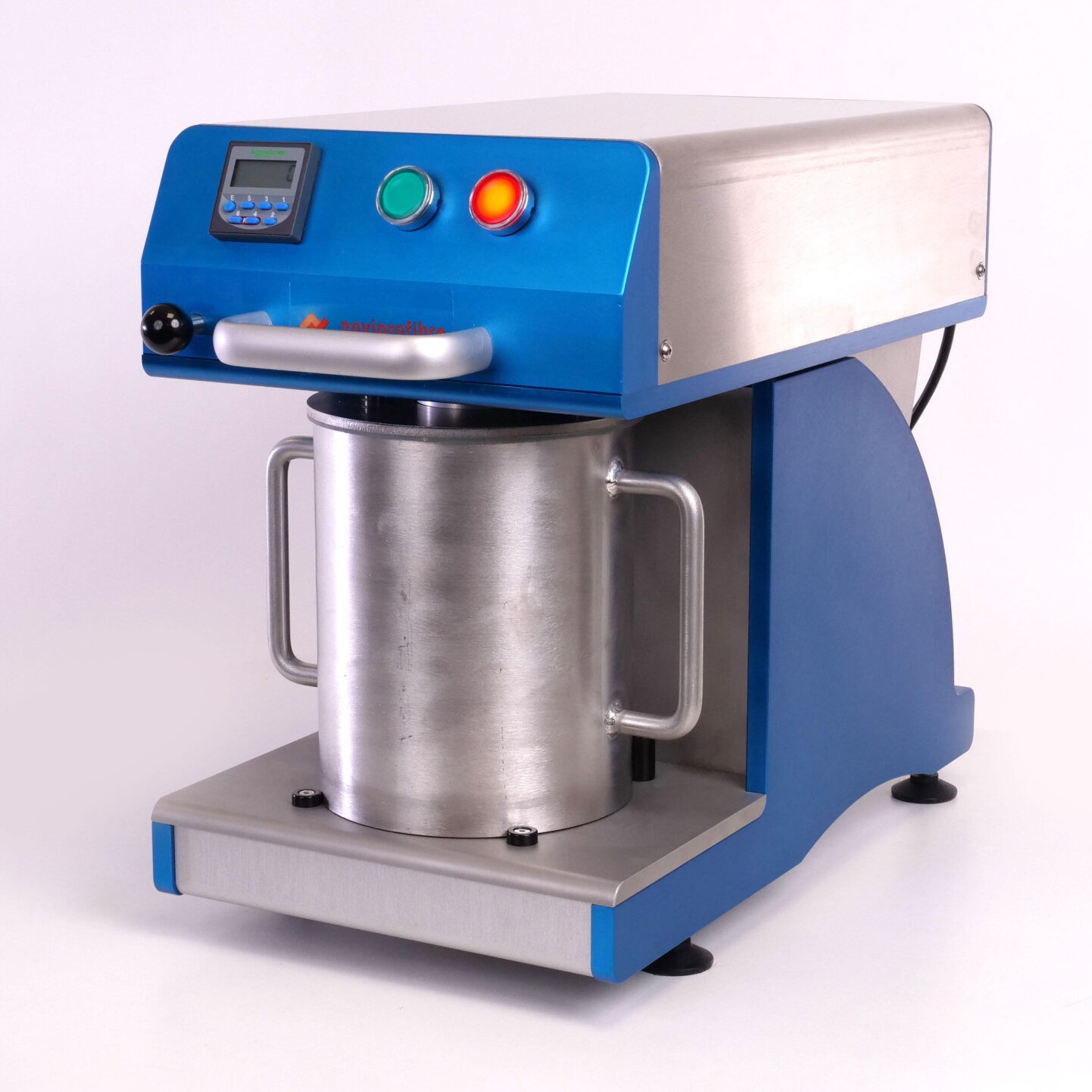

Disintegrator

For the standardized disintegration of pulp suspension.

Product Name Disintegrator
Product Code PTA-N62XX
Standards/Methods TAPPI T 205, ISO 5263-1, PAPTAC C.6, SCAN C18 M2
Test Material Pulp
Manufacturer The PTA Group / Noviprofibre (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

Available Models:

N6210 - Disintegrator with acrylic pot
N6220 - Disintegrator with stainless steel pot



• Made from robust stainless steel and aluminum
• Hinged head for easy take-out of the vessel
• Safety interlock
• Motor: 370 W
• Digital display of the revolutions
• Agitator speed according to standard: 2,980 +- 30 rpm applicable for TAPPI and ISO
• Default Electrical Connection: 230 V / 50 Hz
• Weight (equipment only / with packaging): 36 kg / 56 kg
• Dimensions (W x L x H - equipment only / with packaging): 270 x 400 x 460 mm / 350 x 500 x 600 mm
