Compact Laboratory Pulper

Compact Pulper for defibration of dry samples in laboratory scale.

Product Name Compact Laboratory Pulper
Product Code PTA-N210XXX
Test Material Pulp
Manufacturer The PTA Group / Noviprofibre (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

Available Models:

• Built in stainless steel.
• Rapid defiberization of virgin and secondary fibers.
• Pulped between 30 and 1,400 grams of dry matter.
• Useful volume of the container 7/14/30 liters (depending on model).
• Concentration range between 2 and 7%.
• Variable turbine speed from 100 to 1400 r.p.m.
• Programmable automatic stop timer (option).
• Acrylic lid to avoid splashing.
• CE Marking
• Electrical connection: 110 - 230 V, 50 - 60 Hz
• Weight and dimensions (equipment only): 750 x 300 x 450 mm (W x L x H) / 35 kg


Device Description:

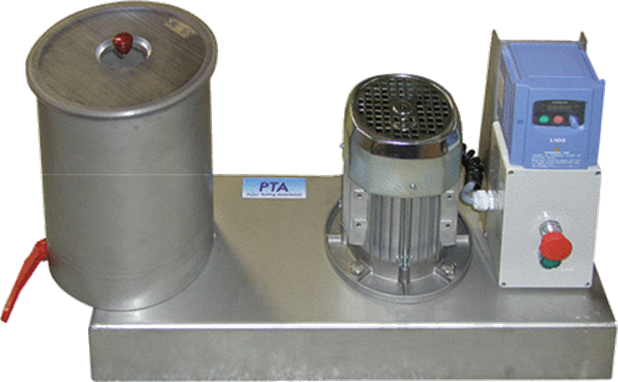

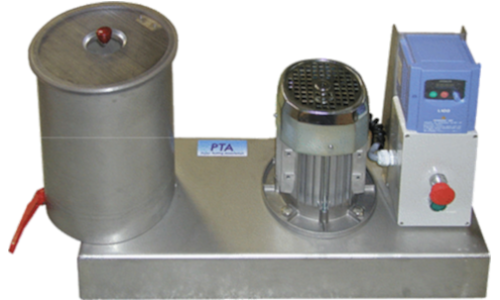

The units consist of a pulping container with a rotor at the bottom driven by a v-belt in the lower part of the unit. The electric motor has an adjustable frequency converter to regulate the rotational speed. There is a ball valve at the bottom to drain the pulp. The pulp is torn by hand and soaked with water, then the pulper is activated to mix the pulp to a homogenous suspension.
