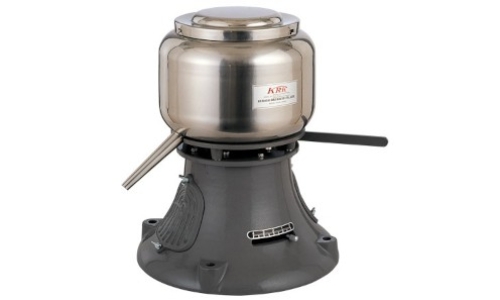

Centrifugal Pulp Dehydrator (Stationary Type)

This machine dehydrates paper stock by centrifugal force. All the sections in contact with liquid are made of stainless steel (SUS-304). The basket is well balanced, free of vibration, so it operates very silently. With permanently lubricated bearings, maintenance is very easy. The brake is applied by pulling the lever.

Product Name Centrifugal Pulp Dehydrator (Stationary Type)
Product Code KRK-2536
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Applications

1.Concentration measurement for beater and machine stock
2.Preparation of concentration-conditioned specimen for measurement of beatability and fibers in white water


Basket: 150mm in inner diameter, 80mm deep
Maximum Rotation Speed: 3,000rpm
Motor: 100/110VAC 0.1kW
Optional: filter cloth
Power Source: 100/110VAC 50/60HZ 4A
Outer Dimensions: 470 x 470 x 560mm
Instrument Weight: 30kg
