Universal Printability Tester (4-color) - OpTest

  Home/Printibility/Universal Printability Tester (4-color)

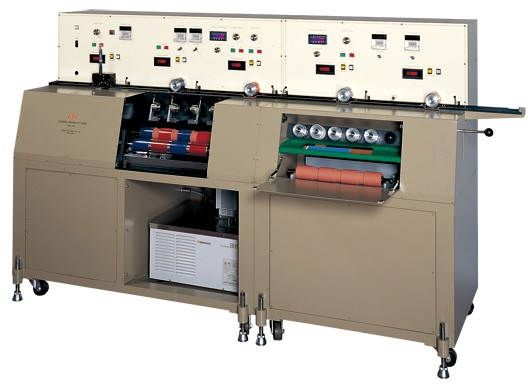

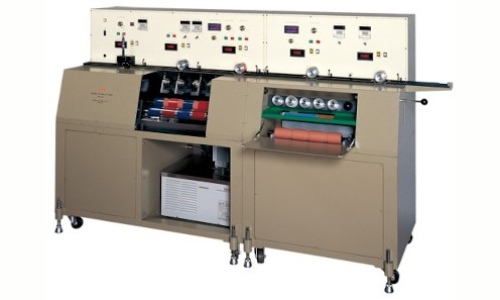

Universal Printability Tester (4-color)

This system has two sets of 2-color press of standard type, capable of printing on wet-on-wet basis: this machine is designed most suitably to grasp the behavior of color printing in the process of commercial off-set press. For set-off test, it is possible to set three stages of time delay at a time for effective testing.

Product Name Universal Printability Tester (4-color)
Product Code KRK-2258-II
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Printing Area: 40mm wide x 200mm long
Printing Pressure: 200 to 1600N (strain gauge measures printing pressure)
Printing Speed: 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10m/sec.
Printing Modes: constant speed print, accelerated print 1, 2, 3m/sec.
Printing unit: 4 units
Outer dimensions: 2750 x 785 x 1445mm
Instrument weight: 1070kg
