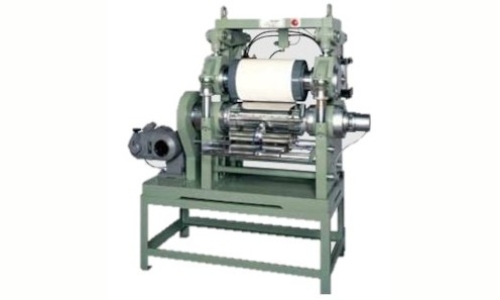

Test Calender (Super-calender Type)

Calendaring is performed in the finishing process of raw paper or coated paper. This process gives gloss to paper surface, improves smoothness, and adjusts sheet thickness. Various mechanical constructions and roll composition are used for specific purposes. They are classified broadly into three kinds of combination: metal and metal rolls (machine calendar), metal and elastic rolls (super calendar), and metal and resin rolls (soft or gloss calendar). It is desirable to select a test calendar most suitable for the intended purpose, considering many items including material used, paper width, linear pressure, temperature, pressurizing method, heating method, sheet paper or continuous paper.

Product Name Test Calender (Super-calender Type)
Product Code KRK-2230-30FC-200E
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Super Calendar 30FC-200E
Roll Composition two rolls (steel, elastic)
Steel Roll 190mm in diameter, surface length 340mm special alloy steel, surface hardness Hs 87°±3° hard chrome plated and polished
Elastic Roll 250mm in diameter, surface length 330mm; special white cotton roll (or resin roll)
Effective Surface Length 300mm
Linear Pressure 400 to 2,000N/cm steplessly variable (in 300mm width)
Pressurization each sheet paper (unwinding/winding device is optional)
Pressing Method pneumatic, pin joint
Press Speed 3 to 12m/min. steplessly variable
Roll Surface Temperature max. 120℃
Roll Heating electric, with heater inside steel roll
Heater each sheet paper (unwinding/winding device is optional)
Temperature Control PID control (optional slide regulator)
Roll Driving Motor three-phase 200V 50/60Hz 1.5kW 7A
Accessory one set of control panel
Power Source three-phase 200/220VAC 50/60Hz 15A
Air Source 0.5MPa
Outer Dimensions calendar: 1,480×970×1,610mm - control panel: 735×670×1,230mm
Instrument Weight calendar: 931kg - control panel: 95kg
