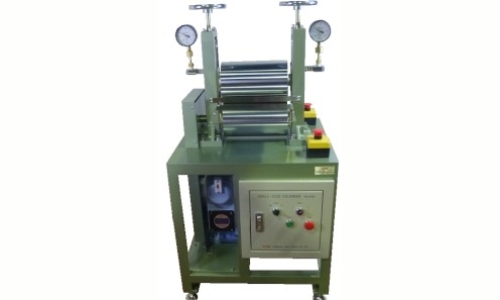

Small Size Calender

This machine is used to adjust the density or smoothness of ordinary paper and handmade paper. It can be easily operated in the laboratory. Machine configuration: provided with two or three hard steel rolls, and a simple hydraulic system; the specimen is pressurized by operating the handle. The paper end is fed into the nip, by sliding the paper placed on the specimen table.

Product Name Small Size Calender
Product Code KRK-2232
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Roll 150mm in diameter, 250mm long, made of SUS or hard chrome plated and polished
Press Speed 2.5 to 10m/min. steplessly variable
Linear Pressure max. 150N/cm
Pressing Method hydraulic, manually operated
Pressure Gauge 3MPa
Motor three-phase 200/220VAC 0.4kW
Outer Dimensions 640×535×1,340mm
Instrument Weight 173kg
