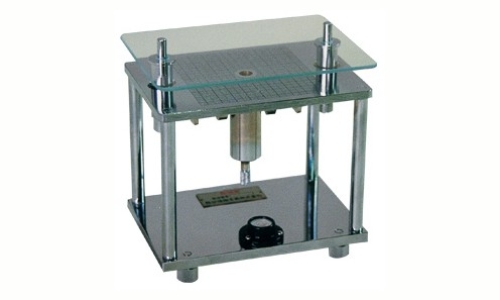

Parallel-plate Viscometer (Spread Meter)

The spread meter is one of methods for measuring fluidity of lithography and printing inks. This instrument is used to determine ‘spread’ of ink. Test principle: a certain amount of ink is placed between two parallel plates, to deform the ink by dead weight of the plates. Along with time elapsed, the ink spreads in circular shape. With increase of the circular area, pressure applied on the ink decreases. After a certain length of time, the diameter of the spread ink is measured. Yield value is determined from the ink spreading speed.

Product Name Parallel-plate Viscometer (Spread Meter)
Product Code KRK-2288
Standards/Methods JIS K-5701-2000
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Glass Plate Dimensions: 150 x 100 x 6mm
Glass Plate Weight: 115 ± 1g
Specimen Hole Size: 10 ± 0.03mm in inner diameter
Specimen Hole Volume: 0.5cm³
Outer Dimensions: 150 x 150 x 160mm
Instrument Weight: 2kg
