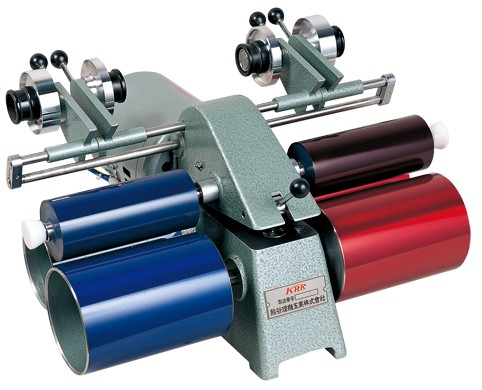

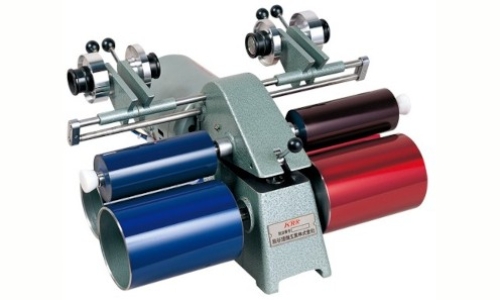

Inking Device

This kneader depends upon IGT testing method, with a process of kneading the ink for a certain span of time and can always form the stable ink film of a certain thickness on the printing plate.

Product Name Inking Device
Product Code KRK-2262
Standards/Methods JIS P-8129-1998. TAPPI UM 591
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Disc: 10, 20mm Wide
Mild Steel Roll: small and large, 2 rolls each; the smaller roll speed is 50rpm, and the larger rolls slides laterally.
Kneading Roll: polyurethane roll and plaster (rubber) roll
Power Source: 100/110VAC 50/60Hz 0.1kW
Outer Dimensions: 400 x 490 x 250mm
Instrument Weight: 27kg
