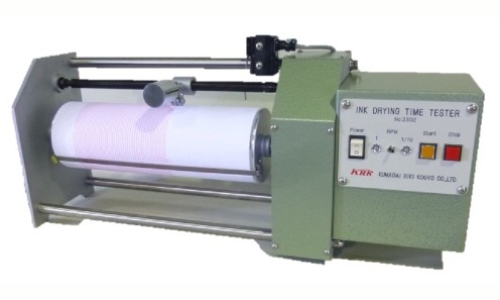

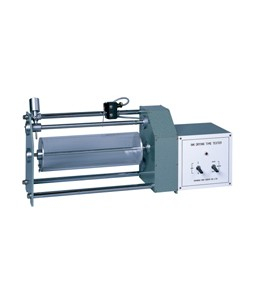

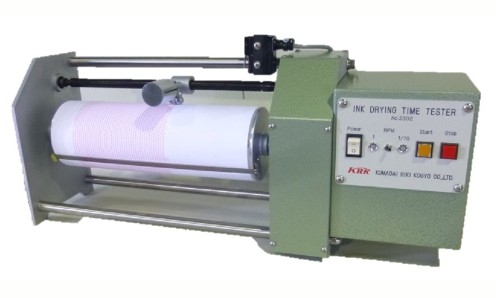

Ink Drying Tester

Drying property of letterpress or lithography ink is evaluated, by measuring the time till the ink dries and it is not transferred to the paper even if it is pressed against the paper. Gravure ink or other inks that are dried by heating or another process cannot be used on this tester. Test principle: a printing specimen and a counter-paper-sheet are overlapped and wound around the drum rotating at a constant speed; upon them, a press gear that applies a constant load is put, and it is moved along with rotation of the drum. From the trace of the press gear on the counter-paper-sheet, the drying time and set-off of the specimen are measured.

Product Name Ink Drying Tester
Product Code KRK-2302
Standards/Methods JIS k-5701-2000
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Drum 103mm in outer diameter, 300mm long, made of acrylic resin
Rotation Speed 1/10rpm, total scanning time 15 hours; 1rpm, total scanning time 1.5 hours
Press Gear geometry specified by JIS, press pressure 750+20gf (7.36+0.20N)
Power Source 100/110VAC 50/60Hz 2A
Outer Dimensions 660×210×265mm
Instrument Weight 16kg
