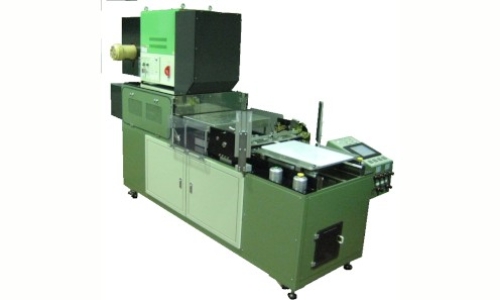

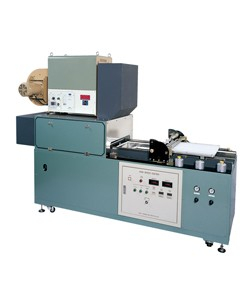

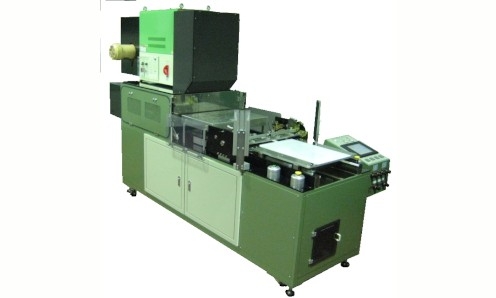

High Speed Coater with Dryer

In the paper making, drying is done immediately after coating. The paper coating quality is significantly influenced by the coating and drying method. With this dryer, the raw paper is applied on the moving table, and coated with color by the blade or rod, and immediately it is dried while moving in the dryer room. It enables you to determine the coating quality of the raw sheet and coloring material, and migration during drying.

Product Name High Speed Coater with Dryer
Product Code KRK-2223
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Specimen size 300mm wide, 400mm long
Base dimensions 370×500mm
Coating speed max. 100m/min. (optional 200m/min.)
Coating method blade and rod
Blade angle 20°to 60°
Drying method hot air circulation (optional IR heater)
Drying temperature max. 200℃
Hot air heater 20kw
Air flow rate adjustable by inverter, max. 15³/min.
Power source three-phase 200/220VAC 50/60Hz 100A
Air source 0.5MPa
Outer dimensions 2,400×780×1,780mm
Instrument weight 760kg
