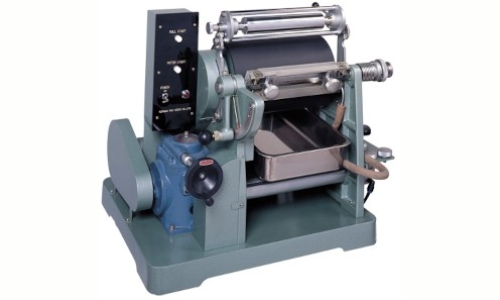

Flexible Trailing Blade Coater (Motorized Type)

This coater applies coating material on the paper or paperboard with a certain thickness. With this machine, coating operation is very easy. The rubber tube is inflated uniformly with compressed air, and the blade (doctor) is pressed onto a backup roll around which the sheet receiving coating material is wound. In this status, coating is made by turning the handle. With a relief valve on the side of the machine, air pressure can be regulated appropriately reading the pressure gauge to secure the desired amount of coating material.

Product Name Flexible Trailing Blade Coater (Motorized Type)
Product Code KRK-2216
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Coating Speed 45 to 240rpm
Coating Viscosity 100 to 20,000mPa・s(cps)
Coating Blade 200mm long×50mm wide select one thickness among 0.2, 0.3 and 0.4mm thick
Blade Angle 0°to 30°
Coating Quantity 2 to 20g/m²
Coating Pressure 0.05 to 0.15MPa (gauge pressure)
Power Source 100/110VAC 50/60Hz 3A
Air Source 0.5MPa
Outer Dimensions 620×550×520mm
Instrument Weight 94.5kg
