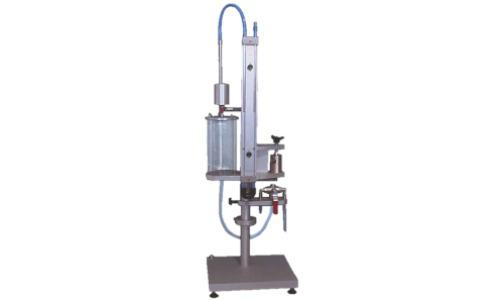

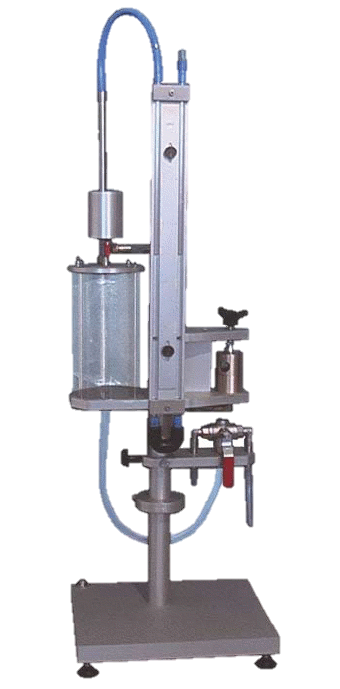

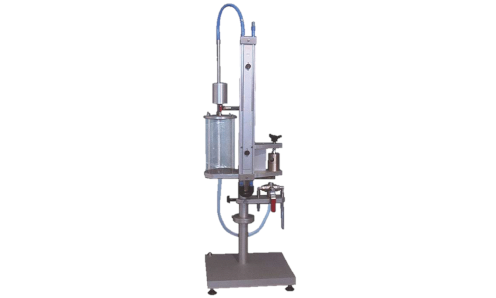

Schopper Air Permeability Tester

For measurement of the air permeability of one sheet of paper according to the Schopper method.

Product Name Schopper Air Permeability Tester
Product Code PTA-N1901
Standards/Methods ISO 5636/2, NFQ 03075
Test Material Paper
Manufacturer The PTA Group / Noviprofibre (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

• Double pass filling bucket for evacuation of air
• Bronze paper press for tightening the sample
• Test surface: 10 cm² for normal papers
• Maximum vacuum: 500 mm height of water
• Mobile part for counterweight
• Water pressure gauge with movable graduated scale for exact adjustment to zero
• 2 measuring cylinders measuring 250 cm3
• Upper clamp with ball joint.
• CE Marking
• Weight and dimensions (equipment only): 450 x 250 x 1250 mm (W x L x H) / 38 Kg
• Weight and dimensions (with packaging): 600 x 400 x 1500 mm (W x L x H) / 40 Kg



Test Description:
The test piece is clamped between two airtight circular gaskets of known dimensions. The absolute air pressure at the side of the test area is equivalent to atmospheric pressure. The difference in pressure between the two sides of the test piece is maintained at a small but substantially constant value during the test. The flow of the air through the test area in specified time can be calculated.
