Round Sample Cutter (Pneumatic)

Pneumatic sample punches for the preparation of 100 cm² round samples (or smaller).

Product Name Round Sample Cutter (Pneumatic)
Product Code PTA-N17XX
Test Material Tissue, Paper, Board
Manufacturer The PTA Group / Noviprofibre (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

Available Models:

• N17100/P - Punching size 100 cm² for tissue, paper, or board
• N1750/P - Punching size 50 cm² for tissue, paper, or board
• N1710/P - Punching size 10 cm² for tissue, paper, or board



• Compressed air: approx. 600 kPa
• Weight (equipment only / with packaging): 37 kg / 48 kg
• Dimensions (W x L x H - equipment only / with packaging): 350 x 200 x 390 mm / 500 x 500 x 700 mm



Device Description:

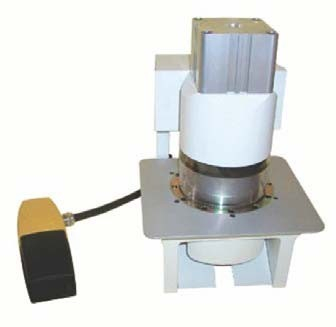

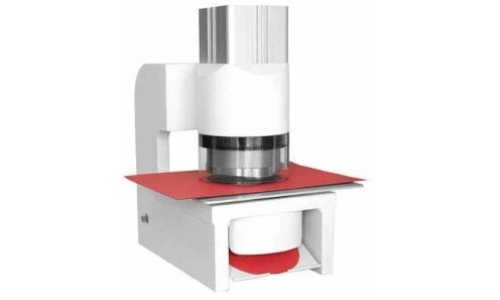

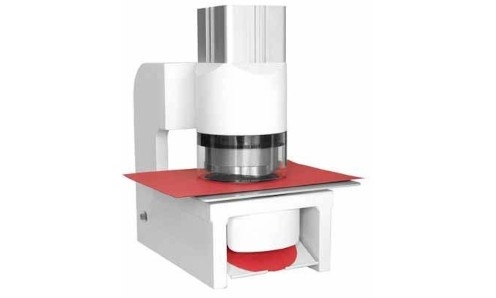

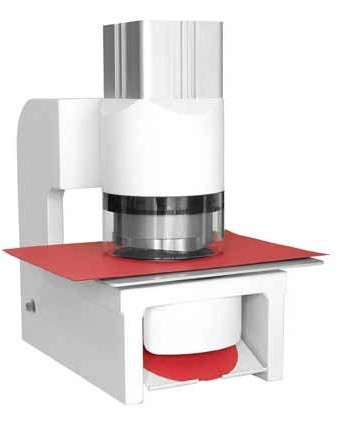

The pneumatic round sample punch consists of a serrated upper blade and a die, through which the sample is expelled downward. For easy removal of the punched sample, a sample slide is mounted on the punch. An acrylic glass safety guard is attached around the punch blade. The round sample punch is available with either a hand or foot switch.

Process Description:
The sample is placed in the punch. The hand or foot switch is used to send the upper blade through the die. The punched sample falls to the sample slide and can then be removed.
