Round Sample Cutter (Manual 100 cm²) - OpTest

  Home/Paper, Tissue, & Board/Round Sample Cutter (Manual 100 cm²)

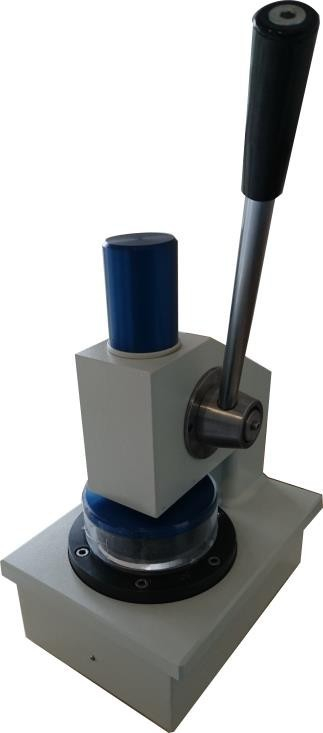

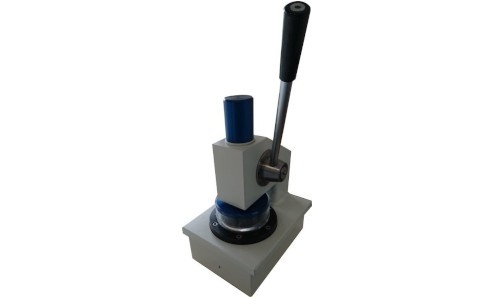

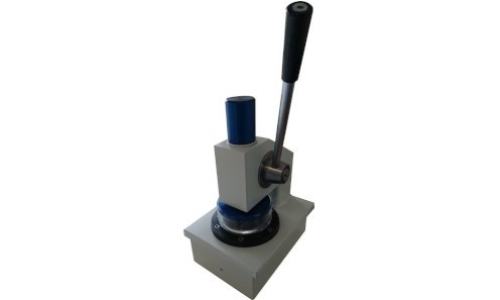

Round Sample Cutter (Manual 100 cm²)

For cutting 100 cm² circular paper samples to assess grammage.

Product Name Round Sample Cutter (Manual 100 cm²)
Product Code PTA-N53100
Standards/Methods TAPPI T 410, SCAN P6:75, CPPA D3
Test Material Paper
Manufacturer The PTA Group / Noviprofibre (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

• Easy to operate
• Bench mounting
• cutting size 100 cm²
• Weight (equipment only / with packaging): 25 kg / 40 kg
• Dimensions (W x L x H - equipment only): 240 x 290 x 435 mm



The Grammage Cutter has been designed to cut 100 cm² circular paper samples to assess grammage. Grammage in paper products is to be calculated from the ration of mass to area. This is an important factor to know as most paper is bought and sold in accordance with its mass per unit area.

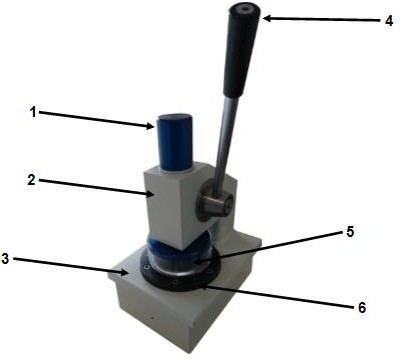

Description of Figure 1:
1. Upper Shield
2. Stand Holder
3. Main Base
4. Handle
5. Upper Blade
6. Lower Blade
