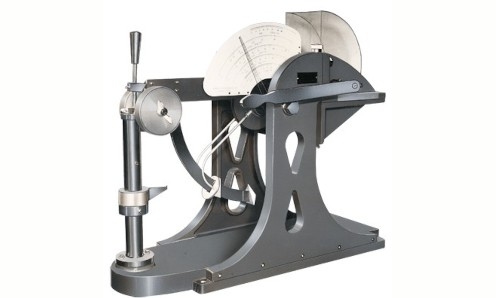

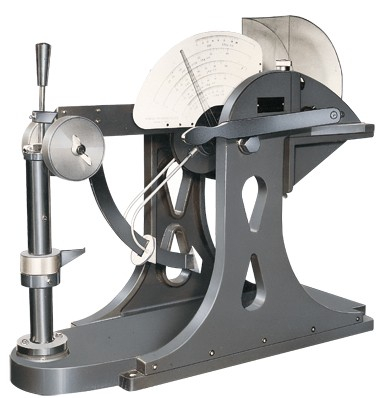

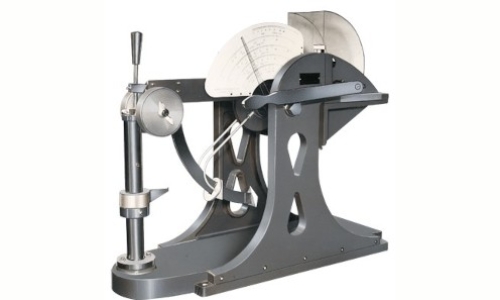

Puncture Tester

There is a potential of breakage of a corrugated cardboard box when it hits another package during transportation. A JIS standard specifies the puncture strength considering such breakage. Puncture strength depends upon thickness and adhesion strength of corrugated board, as well as breaking strength and tearing strength of raw paper. So, puncture strength is a characteristic suitable for evaluating the quality of corrugated board. Test principle: a right-angle pyramid point affixed to the end of the pendulum moves with the pendulum; energy loss when the pyramid point breaks the specimen is read on the scale.

Product Name Puncture Tester
Product Code KRK-2105
Standards/Methods JIS P-8134-1998, TAPPI T 803, ISO 3036
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Pyramid Point: 25.4mm high
Scale: A 50kg·cm, B 100kg·cm, C 200kg·cm, - D 400kg·cm, E 24kg·cm
Outer Dimensions: 820 x 370 x 700mm
Instrument Weight: 142kg
