Multi-strip Wheel Cutter - OpTest

  Home/Paper, Tissue, & Board/Multi-strip Wheel Cutter

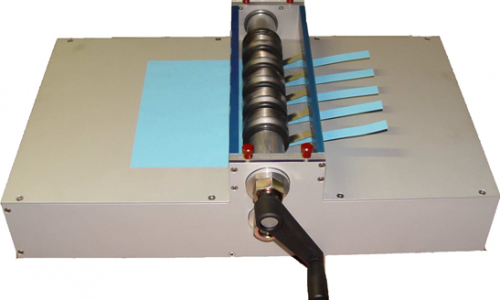

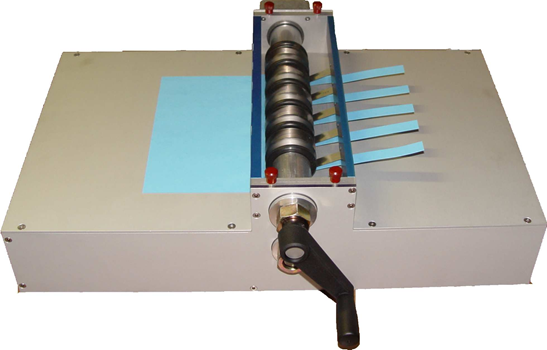

Multi-strip Wheel Cutter

Used to simultaneously cut several test pieces of variable width (the edges being parallel).

Product Name Multi-strip Wheel Cutter
Product Code PTA-N480X
Test Material Paper
Manufacturer The PTA Group / Noviprofibre (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

Available Models:
N4801
N4802
N4803
N4804
N4805



• Multi disc cutter for paper strips.
• Cut 3, 4 or 5 strips simultaneously.
• Cutting widths 12,7, 15, 25, 25,4, 50 mm (to be defined).
• Accuracy less than 0.1 mm.
• Samples cut by small, sharpened knobs
• No risk of interruption cutting different sizes
• Variable length N490X.Y
• X: Number of bands (1 to 5)
• Y: Width of the samples (12.7 mm to 100 mm)
• Same widths or different. For tensile tests, SCT, Scott Bond, etc.
• Crank equipment.
• Robust and easy to use.
• CE Marking
• Weight and dimensions (equipment only): 550 x 330 x 90 mm (W x L x H) / 15 Kg
