Micrometer for Board (Manual or Pneumatic)

To measure the thickness of board.

Product Name Micrometer for Board (Manual or Pneumatic)
Product Code PTA-N1102X
Standards/Methods TAPPI T 411, ISO 534, ISO 12625-3
Test Material Board
Manufacturer The PTA Group / Noviprofibre (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

Available Models:
N 1102 - Manual model: 10 cm² measuring pin
N 1102P - Pneumatic model: 10 cm² measuring pin


• Bound the lowering speed via a throttle
• Battery operated digital measurement gauge
• Resolution: 1 μm, reproducibility: ± 2 μm
• Model with manual control.
• Measuring range 0 - 25 mm
• Measuring accuracy 0.01 mm
• Measuring surface 10 cm²
• Measurement pressure 20 kPa
• Electrical Connection: battery
• Compressed air: approx. 400 kPa (only on the pneumatic model)
• Weight (equipment only / with packaging): 12 kg / 16 kg
• Dimensions (W x L x H - equipment only / with packaging): 200 x 250 x 300 mm / 400 x 400 x 400 mm

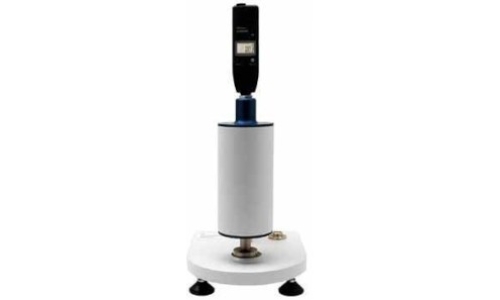

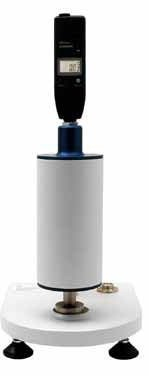

Device Description:
The robust micrometer is available in either pneumatic or manual configuration. Depending on the model, the device is operated via a hand lever or a pneumatic foot pedal. The descending speed acc. to standard is set with a throttle. A battery powered digital measurement gauge is mounted on the device for displaying the measurement results.

Test Description:
Depending on configuration, the measuring pin is lifted via the pneumatic foot pedal or manually with the lever mounted on the side, and the sample is placed in the measurement area. Then the pedal or lever is released, and the measuring pin lowers at a speed limited by the throttle onto the sample. The digital measurement gauge displays the result of the measurement.
