Maron Mechanical Stability Tester (Stepless Speed Change Type) - OpTest

  Home/Paper, Tissue, & Board/Maron Mechanical Stability Tester (Stepless Speed Change Type)

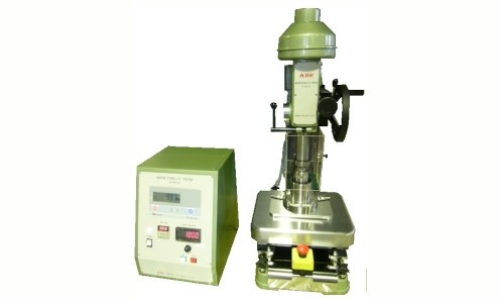

Maron Mechanical Stability Tester (Stepless Speed Change Type)

This tester incorporates a servo motor that enables stepless speed change, allowing measurement under a broad range of conditions. A digital display system is used for its platform scale, enabling various conditions to be digitized.

Product Name Maron Mechanical Stability Tester (Stepless Speed Change Type)
Product Code KRK-2312-II
Standards/Methods JIS K-6392-1995
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Main Shaft Rotation Speed 0 to 2,000rpm (optional 0 to 3,000rpm)
Load digital platform scale 0 to 500N, minimum increment 0.2N (standard)
Time 30-minutes timer
Accessory polyethylene liner
Servo Motor 200/220V 750W
Power Source single-phase 200/220VAC  50/60Hz 3A
Outer Dimensions main unit: 480×590×890mm
control box: 250×200×350mm
Instrument Weight 90kg
Optional constant temperature water tank With motor of 1kW, three-phase 200/220VAC.
