KRK Light Load Type Tearing Tester - OpTest

  Home/Paper, Tissue, & Board/KRK Light Load Type Tearing Tester

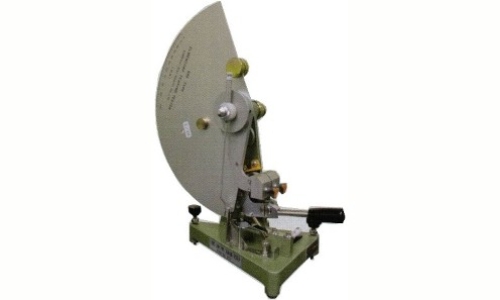

KRK Light Load Type Tearing Tester

This machine was developed with KRK’s own technology to test the tear strength of thin paper sheets, synthetic paper, cellophane, or the like: tear strength of these specimens is difficult to be measured by testers available on market. The principle of this machine is the same as that of the standard type (JIS standard). The rotation speed of the pendulum with no load almost the same as that in the case of a standard type. The maximum tear energy is 1/3 or 1/4 of the standard type (selectable). The position of the chuck is the same as the standard type: the chuck is 27.5 degrees from the vertical line passing the rotation axis with a rotation radius of 104 mm. The size of the specimen, the depth needed to chuck the specimen and the groove depth are also the same as those of the standard type.

Product Name KRK Light Load Type Tearing Tester
Product Code KRK-2037
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Pendulum capacity: 0 to 300mN
Tear energy: 1/3 or 1/4 of standard
Option: 1/16 of standard (super Light Load type)
Outer diameters: 300 x 200 x 370mm
Instrument weight: 6.5kg



Request a Quote or Information
