Heat Seal Tester - OpTest

  Home/Paper, Tissue, & Board/Heat Seal Tester

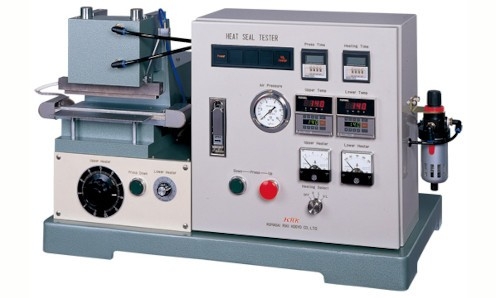

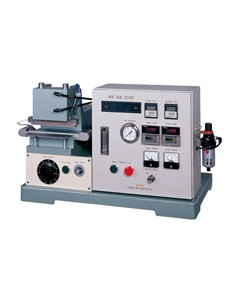

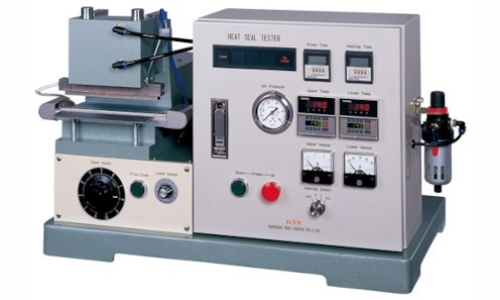

Heat Seal Tester

Heat seal tests on plastic films and laminated materials determine the strength and other characteristics of a specimen's heat-sealed section. For that purpose, heat-sealed specimens must be fabricated first. This tester provides flexible setting of the heat seal conditions, including the heating bar temperature, pressure and pressurizing time, helping fabricate specimens easily in a laboratory.

Product Name Heat Seal Tester
Product Code KRK-2348
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Heat Plate Size 15mm wide×200mm long
Temperature max. 200℃
Compression Pressure 0.5MPa
Compression pneumatic
Compression Time 0.2sec. to 10min
Upper Heating Bar heater 300W, temperature sensor Inserted
Lower Heating Bar with built-in impulse heater
Power Source 100/110VAC 50/60Hz 7A
Air Source 0.5Mpa
Outer Dimensions 850×500×500mm
Instrument Weight 90kg



Request a Quote or Information
