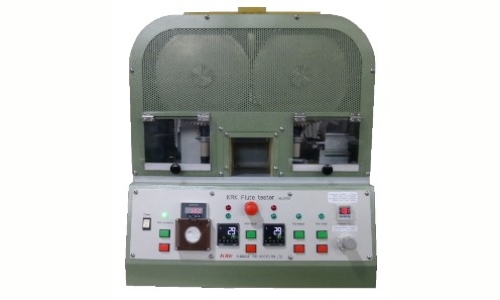

Flute Tester (Horizontal Roll Type)

This tester is developed as a pre-processing device for collecting samples for CMT testing. It works in the following mechanism. On a corrugating machine, pre-heated corrugating medium is threaded through corrugating rolls (gear-shaped) heated to 177±5ºC under a certain pressure, during which process corrugation is performed. The specimen formed is fixed in a rack using a ten-pin cantilever apparatus and then attached to the rack with adhesive tape to form one-sided corrugated board.

Product Name Flute Tester (Horizontal Roll Type)
Product Code KRK-2100-II
Standards/Methods ISO 7263-1994
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Flute Rolls: Flute A 228mm in diameter, 80mm Wide
Roll Speed: 0.5 to 10m/min. variable
Linear Pressure: 10 to 390N/cm (At width 12.7mm)
Flute Roll Temperature: max 180ºC
Temperature Adjustment: provided with temperature controller
Power Source: Single phase 200/220VAC 50/60Hz 15A
Outer Dimensions: 620 x 390 x 600mm
Instrument Weight: 70kg
