Flat Crush Test Cutter (FCT 100 cm²) - OpTest

  Home/Paper, Tissue, & Board/Flat Crush Test Cutter (FCT 100 cm²)

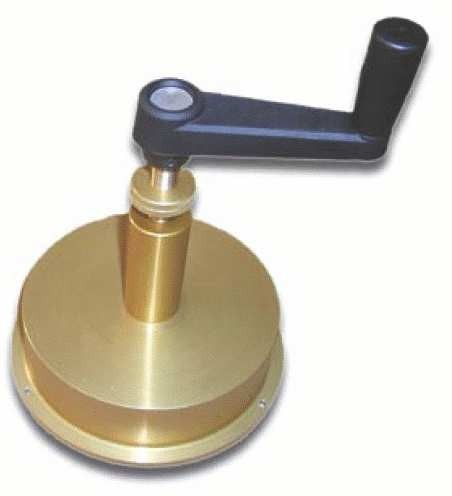

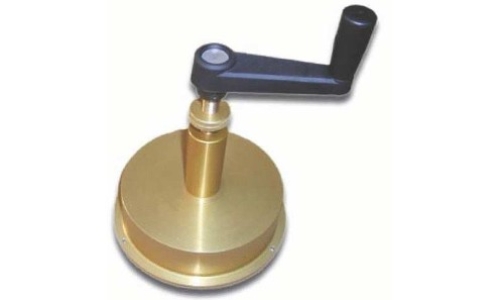

Flat Crush Test Cutter (FCT 100 cm²)

Cutter for corrugated board samples 100 or 50 cm² circular for FCT test and grammage.

Product Name Flat Crush Test Cutter (FCT 100 cm²)
Product Code PTA-N36XX
Standards/Methods ISO 3035, DIN EN 23035
Test Material Board
Manufacturer The PTA Group / Noviprofibre (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

Available Models:

• N36100: For samples of 100 cm²
• N3650: For samples of 50 cm²



• Weight (equipment only / with packaging): 1 kg / 2 kg
• Dimensions (W x L x H - equipment only / with packaging): 150 x 150 x 150 mm / 200 x 200 x 380 mm



Test Description:
An easy to operate manual device.
The FCT circular cutter is placed on the corrugated board sample, which is held by pins while cutting. By turning the crank several rounds the blade cuts through the material slowly. The result is a sample with very precise and smoothly cuts edges. Before the next cut is made the crank must be returned to the starting position.
