Edge Crush Test Cutter (ECT - Billerud Type) - OpTest

  Home/Paper, Tissue, & Board/Edge Crush Test Cutter (ECT - Billerud Type)

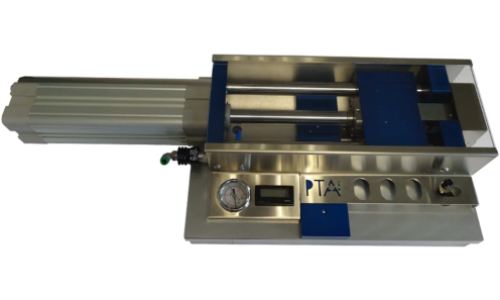

Edge Crush Test Cutter (ECT - Billerud Type)

Used for sample preparation for the ECT Crush Test

Product Name Edge Crush Test Cutter (ECT - Billerud Type)
Product Code PTA-N6800
Standards/Methods TAPPI T 839, T 838, ISO 3037
Test Material Board
Manufacturer Used for sample preparation for the ECT Crush Test
Availability from OpTest Exclusive to Canada, USA, and Mexico

• ISO/FEFCO 25 mm wide cut.
• Cutting system who guaranties clean and parallel cuts.
• Corrugated board thickness up to 15mm.
• Robust and easy handling equipment.
• Sample cutter specially designed for greater speed at work.
• Methacrylate protection cover.
• Security box with all the pneumatic elements.
• Cut counter integrated.
• CE mark.



Billerud pneumatic cutters for cutting samples for ECT test. Equipment with two blades of one edge for parallel samples cutting. Maximum 15 mm thick cut for cardboards. Counter number of cuts incorporated, since the ISO standard advises to change the blades every 200 cuts maximum. ISO/FEFCO model 25 mm wide and Tappi 2· wide.
