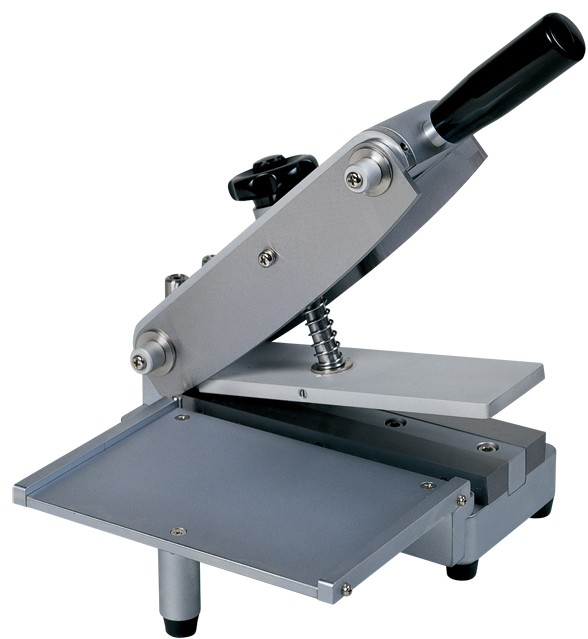

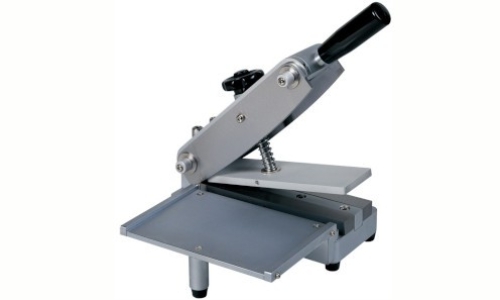

Double-Blade Cutter for Elmendorf Tearing Test

This cutter allows rapid preparation of tearing test specimens with an accurate width. One cycle of cutting produces several specimens free of lint. Most suitable for the tearing test. Two blades are mounted on the handle to cut both ends at a time. This ensures an accurate cutting width. A specimen-holding plate permits safe cutting without causing cockle or waviness. Safety design: when the upper knob is set to the specified position, it is impossible to push down the handle.

Product Name Double-Blade Cutter for Elmendorf Tearing Test
Product Code KRK-2133
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Cutting Length: 180mm
Cutting Width: 63mm
Outer Dimensions: 220 x290 x 260mm
Instrument Weight: 11kg
