Column Compressor for ECT

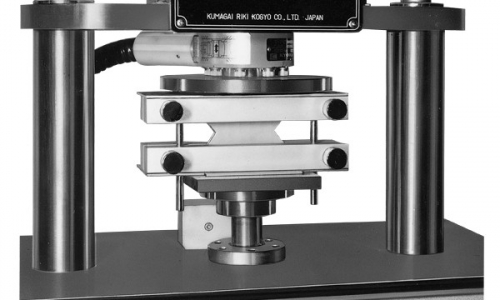

This tester measures the vertical compression strength of a corrugated board sheet and is also referred to as an end crush tester. A corrugated board sheet is erected straight, and load is applied on it. As the load increases, the maximum load is measured that is reached before the side surfaces of the corrugated board Sheet is buckled. The strength perpendicular to the corrugated section is a characteristic value correlated to the pressure-withstanding capacity of the corrugated board case and has a correlation with the ring crush characteristic of the raw paper. Measurement is performed on a specimen collected with a cutter for end crush tests (No. 2134) that is set into a crush tester with this attachment.

Product Name Column Compressor for ECT
Product Code KRK-2097
Standards/Methods JIS Z-0401-1985, ISO 3035
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Outer Dimensions: 170 x 90 x 80mm
Instrument Weight: 0.9kg
