Cobb Size Tester - OpTest

  Home/Paper, Tissue, & Board/Cobb Size Tester

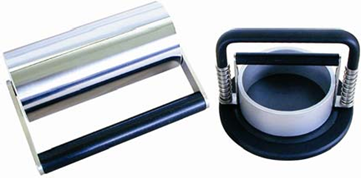

Cobb Size Tester

To measure the water absorbance of paper or board manually (NV100) or with automatic clamping jaws (NV102).

Product Name Cobb Size Tester
Product Code PTA-NV10X
Standards/Methods TAPPI T 441, ISO 535, SCAN P12, DIN 53132, EN 20535, BSEN 20535, PAPTAC F2
Test Material Paper, Board
Manufacturer The PTA Group / Noviprofibre (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

Available Models:

NV100 – Manual Cobb Size Tester
NV102 – Automatic Cobb Size Tester



• Quick sample clamping (by means of two springs).
• Sample test area of 100 cm2.
• 10 kg roll in stainless steel.
• Rubber sealing joint.
• Stainless steel construction.
• Weight (equipment only / with packaging): 13 kg / 15 kg
• Dimensions (W x L x H - equipment only / with packaging): 200 x 300 x 180 mm / 300 x 400 x 200 mm



Test Description:
The Cobb method application requires:
1. Apparatus built with rigid cylinder, lower section is 100 +/- 0.2 cm², weight about 5 cm with automatic clamping.
2. Reference NVR: roller in polish metal, 200 mm length, with 90 mm diameter +/- 10 mm and weight is 10 kg +/- 0.5 kg.
3. Reference NVB: blotting paper with basis weight equal at 250 g/m² +/- 25 g/m². Applicable standard ISO 5269-1
4. Basis weight with accuracy at 1 mg
5. Chronometer to read time in second until 30 minutes
