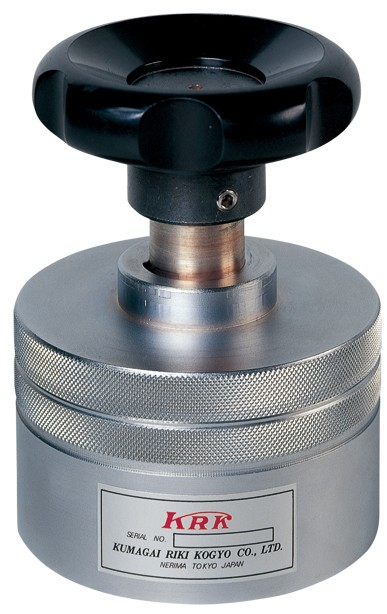

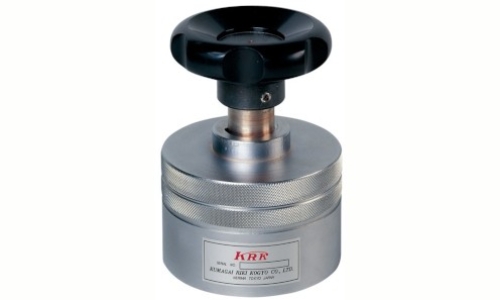

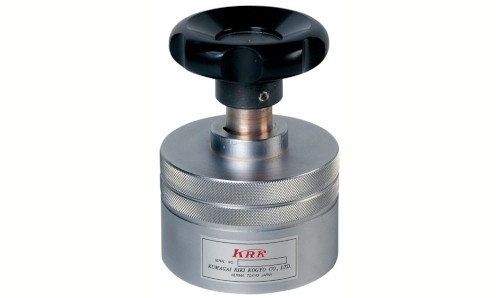

Circular Sample Cutter

This device is designed to quickly collect circular samples such as those described below. It provides precise cutting, preventing sampled sheets from being crushed or from having uneven cut edges. A double-edged razor is installed, which can be replaced easily.

Product Name Circular Sample Cutter
Product Code KRK-2096
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

1. Samples for a delamination test with an area of 19.36cm2 and a diameter of 60.7 mm (for a Mullen high pressure tester) center hole diameter 34.9mm

2. Samples for a flat crush test with an area of 32.2cm2 and a diameter of 64mm

3. Samples for a basis weight test with an area of 100cm2 and a diameter of 112.8mm



Outer Dimensions: 83 to 135mm in diameter, 120 to 136mm high
Instrument Weight: 3kg
