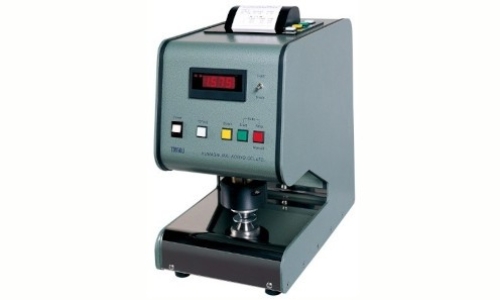

Automatic Micrometer (Standard Type)

Thickness of paper is an essential property closely related to the basis weight. Thickness influences physical and optical properties and has a close relationship with printability.

This gauge measures the thickness of and film down to micron order. Measurement is done by a differential transformer, and the result is digitally shown on a large-size LED display. Very easy to operate with high reproducibility. A model with built-in printer and a model with RS-232C output are also available for avoiding errors in reading and transcription.

Product Name Automatic Micrometer (Standard Type)
Product Code KRK-2137
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Measurement Range: 0 to 1.500mm, digital display (space below the measurement element in the upper position: max. 1.9mm)
Measurement Accuracy: + I µm (at a constant room temperature)
Parallelism: 1 µm
Measurement Element End Diameter: 16mm (JIS, ISO)
Downward Movement Speed of Measurement Element: 2.5mm/second
Measurement Table Diameter: 50mm
Measurement Pressure: 50kPa or 100kPa, deadweight
Measurement Axis Movement Time: 4 seconds/cycle
Measurement Time: about 2 seconds (when the thickness 0mm)
Function: continuous automatic up-and-down, rapid zero adjustment
Optional: built-in printer, RS-232C Output
Referential Standards: JIS P-8118-98, TAPPI T-411om-97, ISO 534-2011
Power Source: 100/110VAC 50/60Hz 1A
Outer Dimensions: 220 x 385 x 415mm (with printer)
Instrument Weight: 27kg
