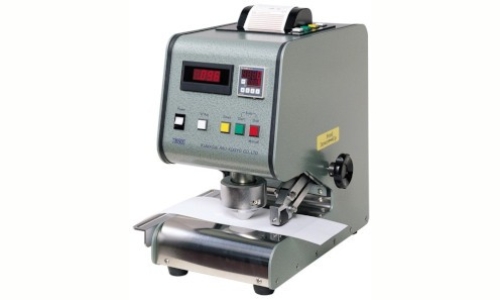

Automatic Micrometer (Paper-feeder Type)

The TM600 series includes a model with built-in feeder, which enables continuous measurement. It is provided with specimen feed rollers by the side of the measurement section. Feed rate can be set in centimeters. Use of optional built-in printer ensures excellent operation efficiency.

Product Name	Automatic Micrometer (Paper-feeder Type)
Product Code	KRK-2137-F
Manufacturer	Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest	Exclusive to Canada, USA, and Mexico

Specifications

Feed Rolls: rubber (upper and lower rolls)
Feed Rate: set at an increment of one centimeter
Optional: built-in printer, RS-232C output
Power Source: 100/110VAC 50/60Hz 1A
Outer Dimensions: 285 x 420 x 415mm (with printer)
Instrument Weight: 30kg
