Sheet Press
Product Name : Sheet Press
Product Code :
Details : Rapidly De-water the Hand-sheets After Couching
Standard and Methods :TAPPI T 205 OM-88, ISO 5269/1, JIS P-8222-1998
Categories :Pulp & Fibrous Materials
Manufacturer : KRK (Kumagai Riki Kogyo Co. Ltd.)
Regional Availabilty : US/Can/Mex
Description

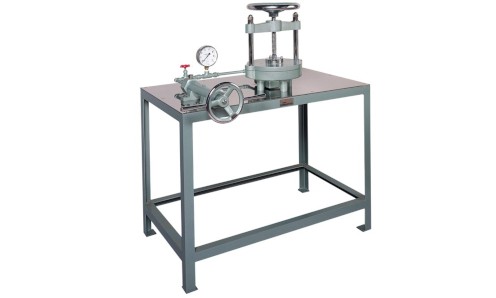

This machine rapidly dewaters the paper sheet after couching, which was made by the sheet machine. Machine configuration: by the movement of the pump piston, glycerin pushes upward the floating pressure plate via the rubber diaphragm in the press, to apply a pressure to the specimen. The upper disc of the press is supported by two columns, facilitating handling of the sheet. This upper disc can be easily moved upward.
Pressure: 410 + 10kPa (gauge pressure 0.35MPa)
Optional: mounting support
Outer Dimensions: 950 x 560 x 1120mm (with support)
Instrument Weight: 65kg (with support)
