Description

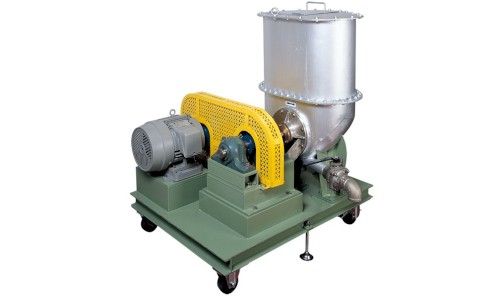

This is a small type simulating the pulper used in the paper mill. It rapidly disintegrates pulp and waste paper. For effectively circulating slurry and giving shear force, the impeller is placed on the bottom, thereby shortening disintegration time, and reducing power cost.
Capacity: 100 to 500 liters
Concentration: 3%
Specimen: 3 to 15kg
Specimen Tank: made of SUS-304
Runner Diameter: 200 to 300mm
Rotation Speed: 500 to 1300rpm
Motor: 480V, 60Hz, 3-phase 7.5kW
Stepless Speed Change: control with inverter
Outer Dimensions: 1200 x 1500 x 1800mm (500 liters)
Instrument Weight: 950kg (500 liters)
