Description

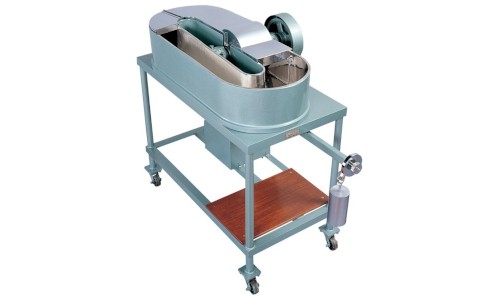

This machine is widely used as a standard tester per JIS and TAPPI. Unlike the conventional beater, the roll is fixed, and a constant load is applied on the head plate, thereby constantly giving a uniform beating pressure. It is excellent especially in free beating and wet beating. So, it is very effective for quality management.
Model: BE-23
Capacity: 23 liters
Concentration: max. 3%
Rotation Speed of Roll: about 500rpm
Fly Bars: made of SUS-304
Bed Bars: made of SUS-304
Tab: made of SUS-304
Motor: 0.4kW
Power Source: three-phase 200/220VAC 50/60Hz 5A
Outer Dimensions: 1320 x 600 x 1250mm
Instrument Weight: 250kg
