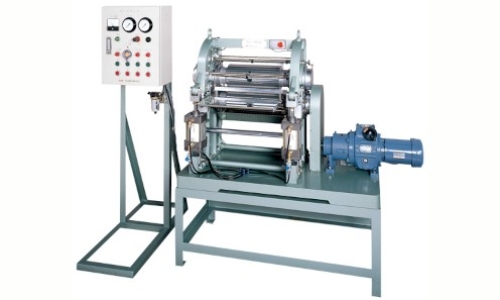

Test Calender (Simplified Machine-calender Type)

Calendaring is performed in the finishing process of raw paper or coated paper. This process gives gloss to paper surface, improves smoothness, and adjusts sheet thickness. Various mechanical constructions and roll composition are used for specific purposes. They are classified broadly into three kinds of combination: metal and metal rolls (machine calendar), metal and elastic rolls (super calendar), and metal and resin rolls (soft or gloss calendar). It is desirable to select a test calendar most suitable for the intended purpose, considering many items including material used, paper width, linear pressure, temperature, pressurizing method, heating method, sheet paper or continuous paper.

Product Name Test Calender (Simplified Machine-calender Type)
Product Code KRK-2230-25FF-100E
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Simplified Machine Calendar 25FF-100E
Roll Composition two rolls (steel, steel)
Steel Roll 150mm in diameter, special alloy steel, hard chrome plated and polished
Effective Surface Length 250mm Linear pressure 200 to 1,000N/cm steplessly variable (in 250mm width)
Pressing Method pneumatic
Roll Heating electric heating system
Pressurization each sheet
Press Speed 3 to 12m/min.
Accessory one set of control panel
Roll Surface Temperature max. 200℃
Power Source electric heating system
Air Source 0.5MPa
Outer Dimensions calendar: 1,185×555×1,385mm - control panel: 730×580×1,175mm
Instrument Weight calendar: 550kg - control panel: 95kg
