Universal Micrometer (Digital) - OpTest

  Home/Paper, Tissue, & Board/Universal Micrometer (Digital)

Universal Micrometer (Digital)

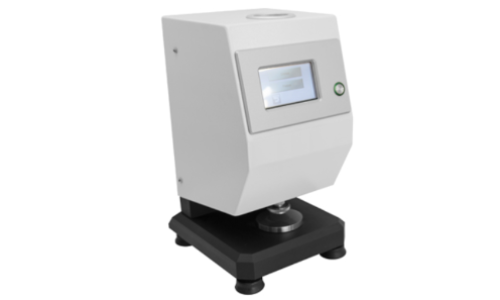

Digital automatic touch screen micrometer with the possibility of placing different probes and interchangeable weights for different materials such as paper, cardboard, tissue paper, leather etc. It has two use functions: in manual mode, measured to average, and automatic mode with the probe in automatic to perform several measurements in series by raising and lowering the probe continuously. Complete reel profile statistics and graphs. Possibility of connecting to PC and a printer.

Product Name Universal Micrometer (Digital)
Product Code PTA-010127
Standards/Methods TAPPI T 411, ISO 534, UNE-EN ISO 12625-3, SCAN P7, SCAN P11, SCAN P47, FEFCO NO.3
Test Material Paper, Tissue, Board, Plastic Film
Manufacturer The PTA Group (PTA)
Availability from OpTest Exclusive to Canada, USA, and Mexico

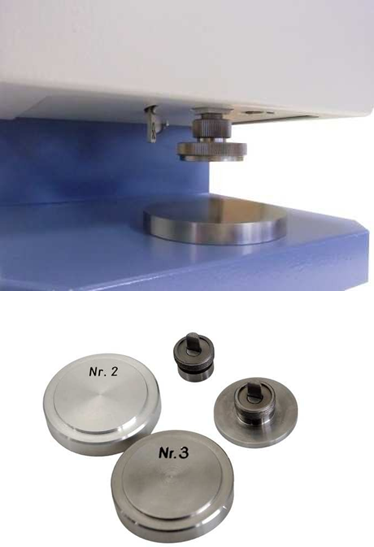

• Possibility to measure the thickness on different type of materials. Just exchanging the measuring pin and the load weights, the micrometer will be configured to measure paper, tissue, or cardboard samples. When placing an order, it must be specified work standard, to configure the equipment with the adequate measuring pin and load weights
• USB connection to printer, with printing of result values and mean values
• Timer for test cycles
• Measuring resolution 0,001 mm
• Electrical ascent and descent of the measuring pin
• Measuring range: 0-25 mm
• Sample support: 80 mm diameter
• Lowering speed adjustable from 1 to 11 mm/min.
• Dwell time adjustable from 0-999.9s
• Compatible with Novilog software
• Only one keystroke for calibration
• CE mark
• Electrical Connection: 220V/50HZ or 110V/60Hz
• Weight (equipment only / with packaging): 30 kg / 40 kg
• Dimensions (W x L x H - equipment only / with packaging): 200 x 250 x 370 mm / 360 x 380 x 560 mm



User Interface:

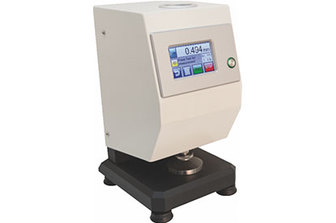

Machine controlled by means of a touch screen and an auxiliary button.
• Through the visualization and control screen, the total control and configuration of the machine can be managed.
• Easy and intuitive operation of the control menu, configurable in different languages.
• Result table with a maximum of 10 test results. Thickness and bulk density results.
• Possibility of display the test results in graphic way.
• Statistical control. Mean value, standard deviation, and maximum and minimum values.
• Different configurable units.
• Periodical program updates (without additional cost).



Operation Mode:
The Micrometer can operate in different modes:
Manual mode. The measuring pin is ascended and descended manually by pushing the correspondent buttons in the screen.
Automatic mode. Single measure. In this mode, after pushing the Test button, the measuring pin will descend, will remain over the sample a predetermined time, and then will elevate again.
Automatic mode. Cycle Test. In this mode, after pushing the Test button, the measuring pin will descend, will remain over the sample a predetermined time, and then will elevate again. This operation will be done in a continues way the number of times predetermined, with the interval of time predetermined between each measure.
