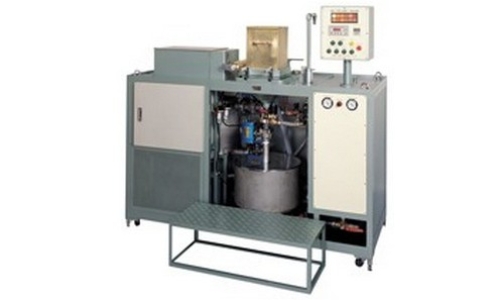

Square Sheet Former with White Water Recovery

The paper sheet handmade according to the method given in the ISO standard is significantly different in formation, fiber orientation and strength from the sheet made by Fourdrinier machine (practical machine). The No.2558-I was developed to provide a paper-making condition similar to the practical machine in the dewatering process. The white water recovery device recovers fine fibers and filler, and the suction device sucks away the water at a negative pressure. A wide range of paper-making conditions is available. It is also possible to make paper as with the standard square machine. With this machine, the couching operation is automated, alleviating workload of the operator.

Product Name Square Sheet Former with White Water Recovery
Product Code KRK-2558-I
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Paper Making Size 250×250mm or 158mm in diameter
White Water Chest capacity 120L, material SUS-304, with agitator
Vacuum Tank SUS-304
Vacuum Degree max. 600mmHg
Vacuum Meter digital
Vacuum Pump 75L/min., three-phase 200/220VAC, 0.4kW
Number of Couching Operations 5 (1 to 9) by pre-setting counter
Couching Speed 200 (100 to 300) mm/sec.
Power Source three-phase 200/220VAC 50/60Hz 10A
Air Source 0.5MPa
Outer Dimensions 75L/min., three-phase 200/220VAC, 0.4kW
Instrument Weight 670kg
